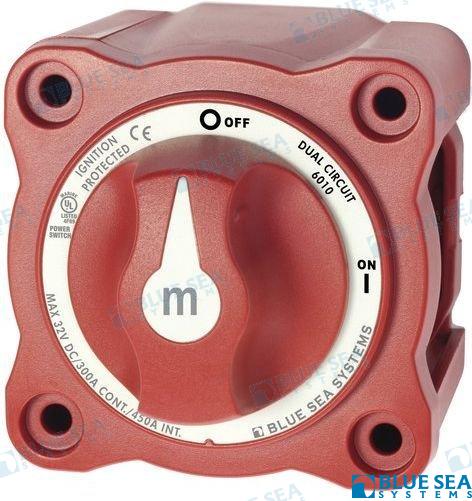

SWITCH BATTERY MINI DUAL CIRCUIT
(Mini) Battery Switch Dual Circuit™
Ignition protected—safe for installation aboard gasoline powered boats
- Case design allows surface, front panel, or rear panel mounting
- Isolating cover with snap-on sections protects rear contacts
Specifications
| Cranking Rating: 10 sec. | 1,000 Amps |
| Intermittent Rating: 5 min. | 450 Amps |
| Continuous Rating | 300 Amps |
| Maximum Voltage Rating | 32 Volts DC |
| Terminal Stud Size | 3/8"-16 (M10) |
| Terminal Stud Torque | 120 in-lb (13.56 N·m) max. |
| Mounting Holes | Accept #10 Screw |
| Cable Size to Meet Ratings | 4/0 AWG (95mm²) |
| Cable Clearance For 4/0 AWG Cables | 1.12" (28.4mm) |
| Weight Lb (Kg) | 0.80 (0.36) |
Certifications & Agency Standards
- CE Marked
- UL Listed - UL 1107 electric power switches
- Meets American Boat and Yacht Council (ABYC) requirements
- Meets UL 1500 and SAE J1171 external ignition protection requirements
The references that are listed here are trademarks that apply to the respective trademark owners. The references are used only for a reference purpose. Our product is compatible with these reference numbers. Please note that our product is an aftermarket product (non-OEM), unless otherwise stated.
